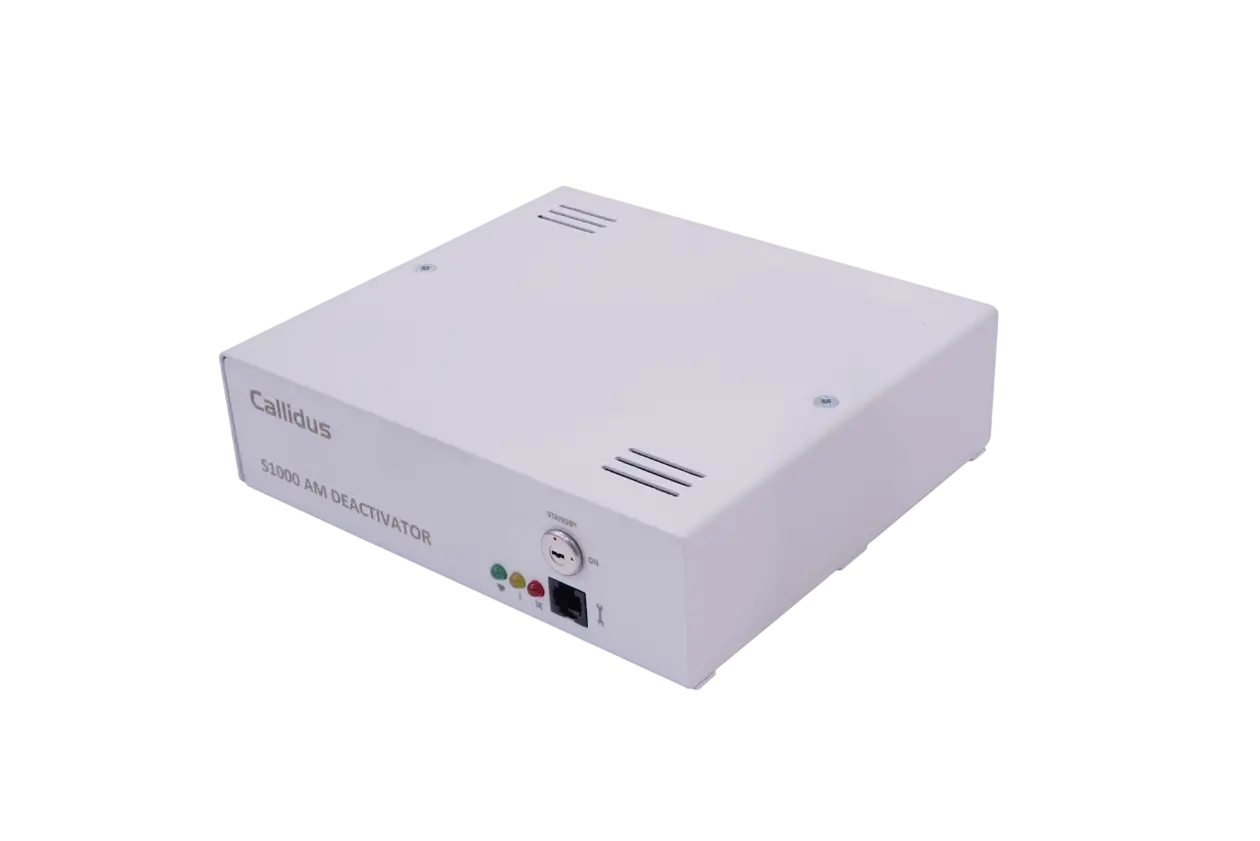

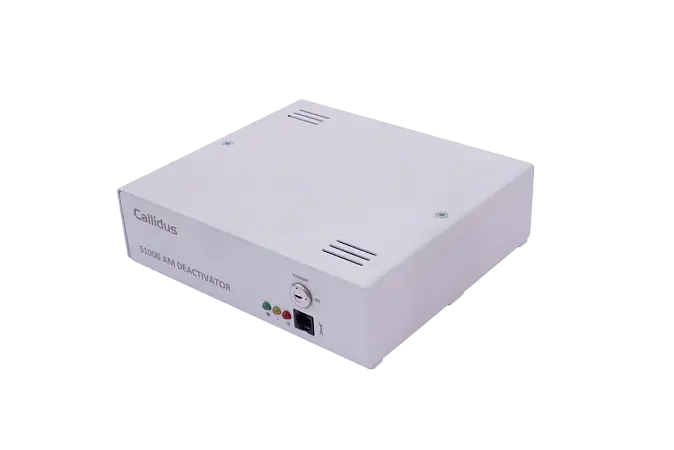

S1000 AM Deactivator

AM deactivator compatible with wide range deactivation pads and coils for checkout scanners.

S1000 AM Deactivator

AM deactivator compatible with wide range deactivation pads and coils for checkout scanners.

Description

  • Compact design, internal power supply

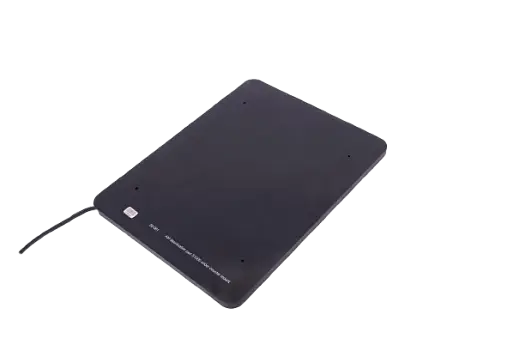

  • Vertical, horizontal or undercounter installation allowed

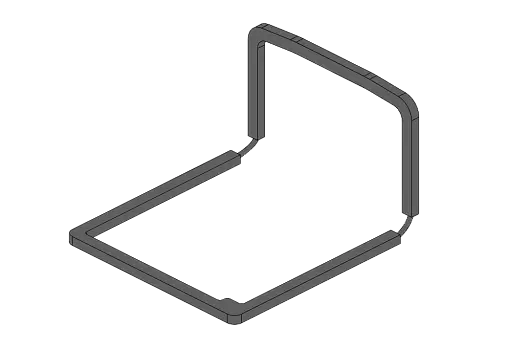

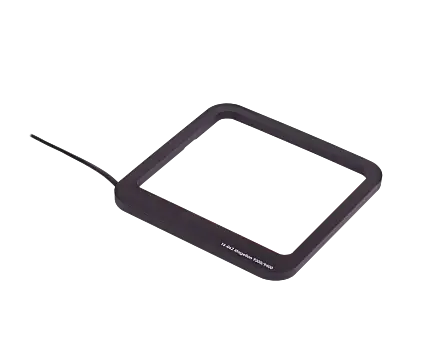

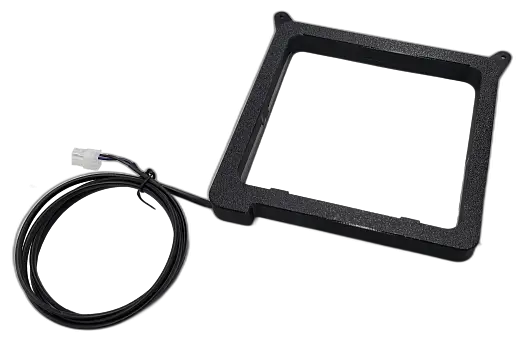

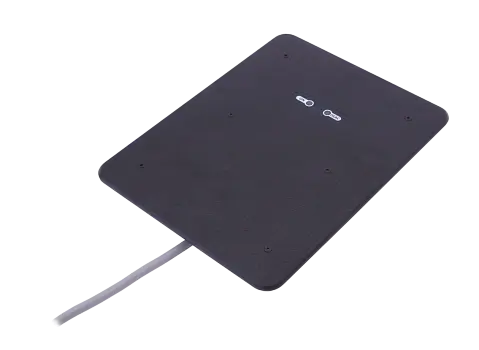

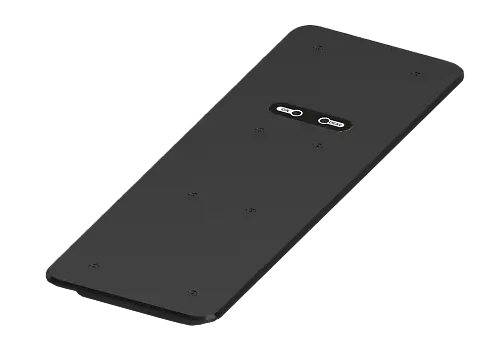

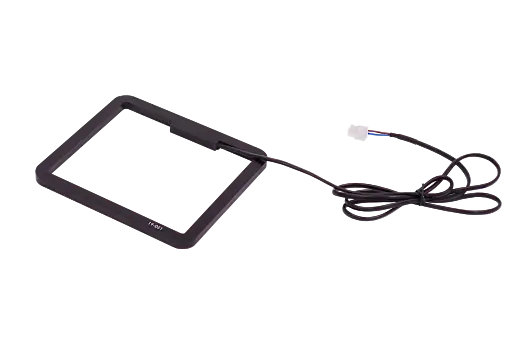

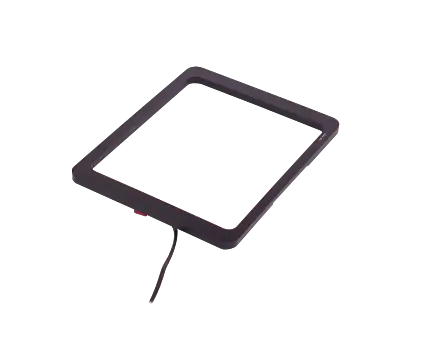

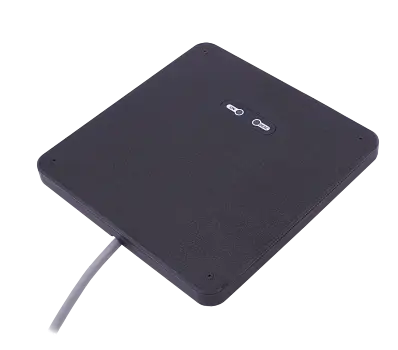

  • Compatible with wide range of deactivation pads and coils for bar
  • One control unit can drive one deactivation pad
  • Auto synchronization to the nearest AM systems
  • Standard mode (detection and deactivation), tag-checker mode only, standby mode, switch ON/OFF deactivation by key
  • Network connection, remote tuning and management via eComm device or via HW key (local connection).
  • Without MQTT connectivity.
  • Possibility to use ShopMonitor Lite Dashboard for device monitoring

Technical parameters

Dimensions (L x W x H) 18.7 x 17 x 5.2 cm (7.36 x 6.69 x 2.05 in)
Weight 1.7 kg (3.74 lb)
Power requirement 115V/60Hz or 230V/50Hz, 20W max, standby mode 4W
Operating frequency 58 kHz
Status indication Buzzer, LED indicators
Detection distance Up to 25/18 cm (9.84 x 7.08 in), depending on the AM deactivation pad connected

Product benefitsFrom Callidus

  • Own production

    We manage the entire production ourselves.

  • Detection accuracy

    Suitable for high loss environments.

  • Customizations

    We can prepare a product exactly to your specifications.

  • Compatibility

    We are compatible with global retail standards.
