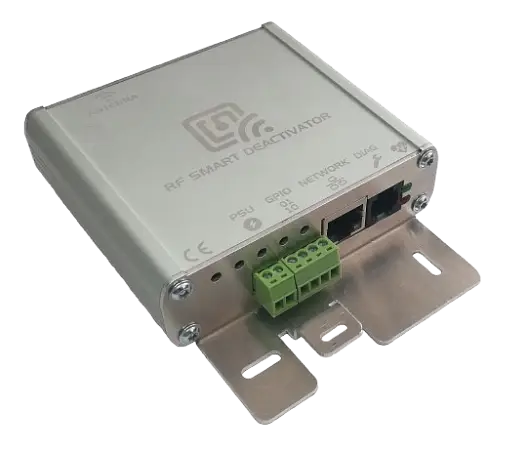

RF Smart Deactivator

RF Smart Deactivator

Description

Callidus RF Smart Deactivator is a compact and powerful deactivation unit designed for reliable deactivation of RF tags. With its robust aluminum housing, broad compatibility, and advanced control options, it is the ideal choice for high-volume operations with demanding monitoring and device management requirements.The device supports local and remote management, offers several operating modes, and can be easily integrated into POS systems and existing IT infrastructure.

  • Compact design
  • Aluminum housing for long lifetime in heavy conditions
  • Compatible with wide range of deactivation pads and POS scanners
  • One control unit can drive one deactivation pad (two in special installations)
  • Wide range of working modes (tag checker mode, deactivation only, deactivation after detection/verification after deactivation)
  • Standby mode/operate mode activation by key, external pedal switch, POS
  • Synchronization possibilities (50/60Hz line sync, free run etc.)
  • Network connection, remote tuning and management via integrated LAN or via HW key (local connection)
  • Optional MQTT/REST API communication
  • Possibility to use Shop Monitor Lite Dashboard for device monitoring

Technical parameters

Dimensions (L x W x H) 11.5 x 9.4 x 3 cm (4.53 x 3.7 x 1.18 in)
Weight 0.22 kg (0.49 lb)
Power requirement 15VAC, 6W max (plug adaptor included)
Operating frequency 8.2 MHz frequency band
Status indication Buzzer, LED indicators

Product benefitsFrom Callidus

  • Own production

    We manage the entire production ourselves.

  • Detection accuracy

    Suitable for high loss environments.

  • Customizations

    We can prepare a product exactly to your specifications.

  • Compatibility

    We are compatible with global retail standards.
