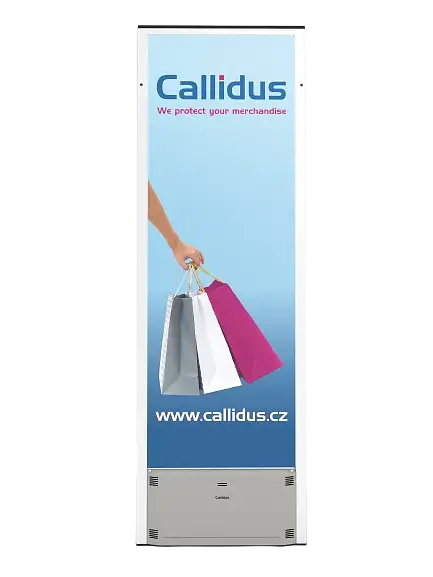

CPP+ 540 AM-RF Hybrid LGP
CPP+ 540 AM-RF Hybrid LGP
Technical parameters
| Technology characteristic | Superior AM and RF technology |
|---|---|
| People counting and alarm validation Different alarm types (incoming, outgoing) | yes |
| Foil bag detection (optional by license) | yes |
| Permanent magnet detection (optional by hardware) | yes |
| MQTT and REST API (optional by license) | yes |
| Camera integration availability | no |
| RFID integration availability (see RFID products) | no |
| Energy-saving mode | yes |
| Advertising - poster dimensions | 1400 x 485 mm (55.12 x 19.09 in) (recommended advertising foil material e.g. Coala Backlit S Mat 205 µm or similar suitable for LGP) |
| Design category | LGP (Light Guide Plate) |
| Color options | Matt grey (basic) black and white on the request |
| Available in a premium brushed finish | yes |
| Certifications | UL, CE, FCC |
| Dimensions (L x W x H) | 54.5 x 168 x 5.5 cm (21.5 x 66.1 x 2.2 in) |
| Base depth | 9.5 cm (3.7 in) |
| Weight | 18.5 kg |
| Power requirement | 115V/60Hz or 230V/50Hz, 50W max, inbuild UL power supply |
| Operating frequency | 58 kHz and 8.2 MHz frequency range |
| Detection-labels | up to 180 cm (5.9 ft.) aisle |
Product benefitsFrom Callidus
Detection accuracy
Suitable for high loss environments.
Customizations
We can prepare a product exactly to your specifications.
Compatibility
We are compatible with global retail standards.
