AM Smart Deactivation All-in-one

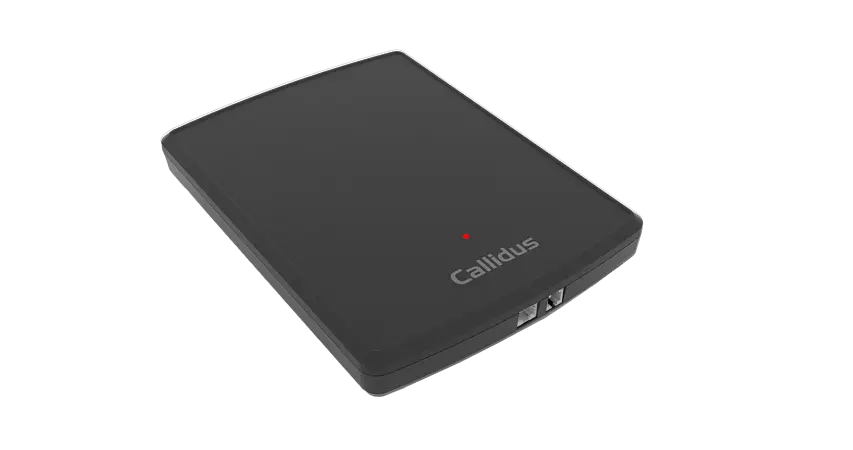

Callidus AM Smart Deactivator All-in-one is a compact and fully integrated solution for deactivating AM labels.

AM Smart Deactivation All-in-one

Callidus AM Smart Deactivator All-in-one is a compact and fully integrated solution for deactivating AM labels.

Description

Callidus AM Smart Deactivator All-in-one is a compact and fully integrated solution for deactivating AM labels. Thanks to its 'All-in-one' design, it combines a control unit and a deactivation pad in a single device, requiring only a connection to a power source. The deactivator is primarily designed for desktop use, but it can also be installed under a non-metal counter using the included holders.

  • Compact design
  • All-in-one solution
  • Auto synchronization to the nearest AM systems
  • Standard mode (detection and deactivation), tag-checker mode only, standby mode
  • LED device status indication
  • Ethernet LAN connectivity / remote tuning (embedded 'eComm' functionality)
  • MQTT/REST API integration available (activation key required per device)
  • Pedal and/or scanner EAS interlock input
  • Possibility to use ShopMonitor Lite Dashboard for device monitoring

Technical parameters

Dimensions (L x W x H) 28 x 20.6 x 3.2 cm (11.02 x 8.11 x 1.26 in)
Weight 1.5 kg (3.3 lb) including accessories and PSU
Patch cable 2 m (6.5 ft)
Power requirement 15VAC, 10W max (plug adaptor included)
Operating frequency 58 kHz
Status indication Buzzer, LED indicators
Detection distance Up to 20 cm (7.87 in)
Deactivation distance Up to 15 cm (5.9 in)
