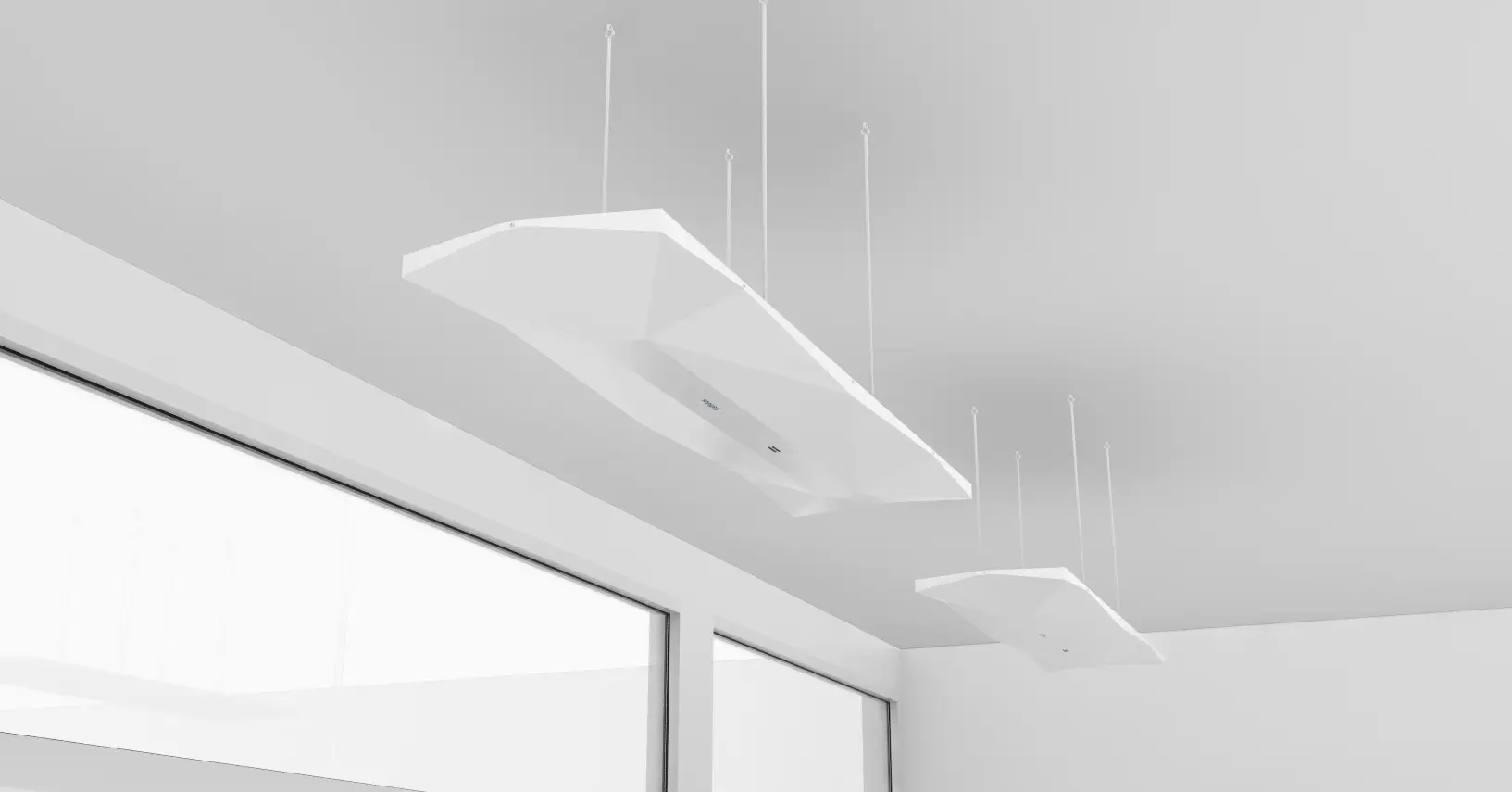

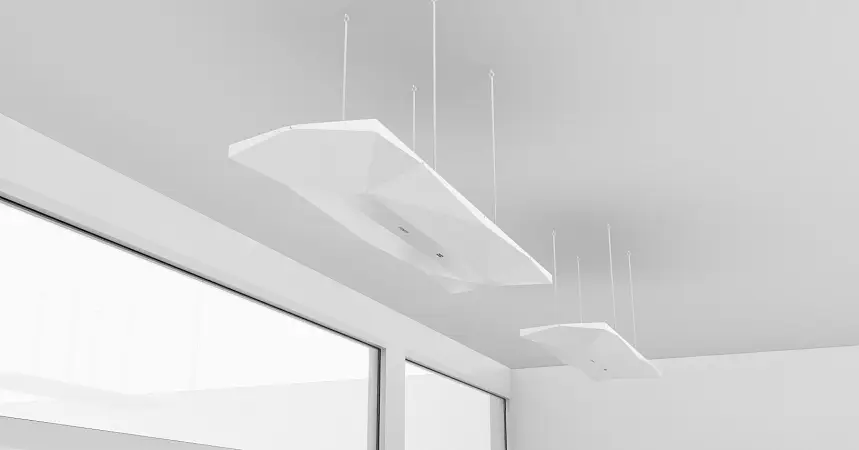

AM Ceiling Extender

AM Ceiling Extender

Description

  • Network connection, remote tuning and management
  • Energy efficient - about 20W power consumption
  • Advanced SW features (tag-too-close, adaptive sensitivity adjustment, etc.)

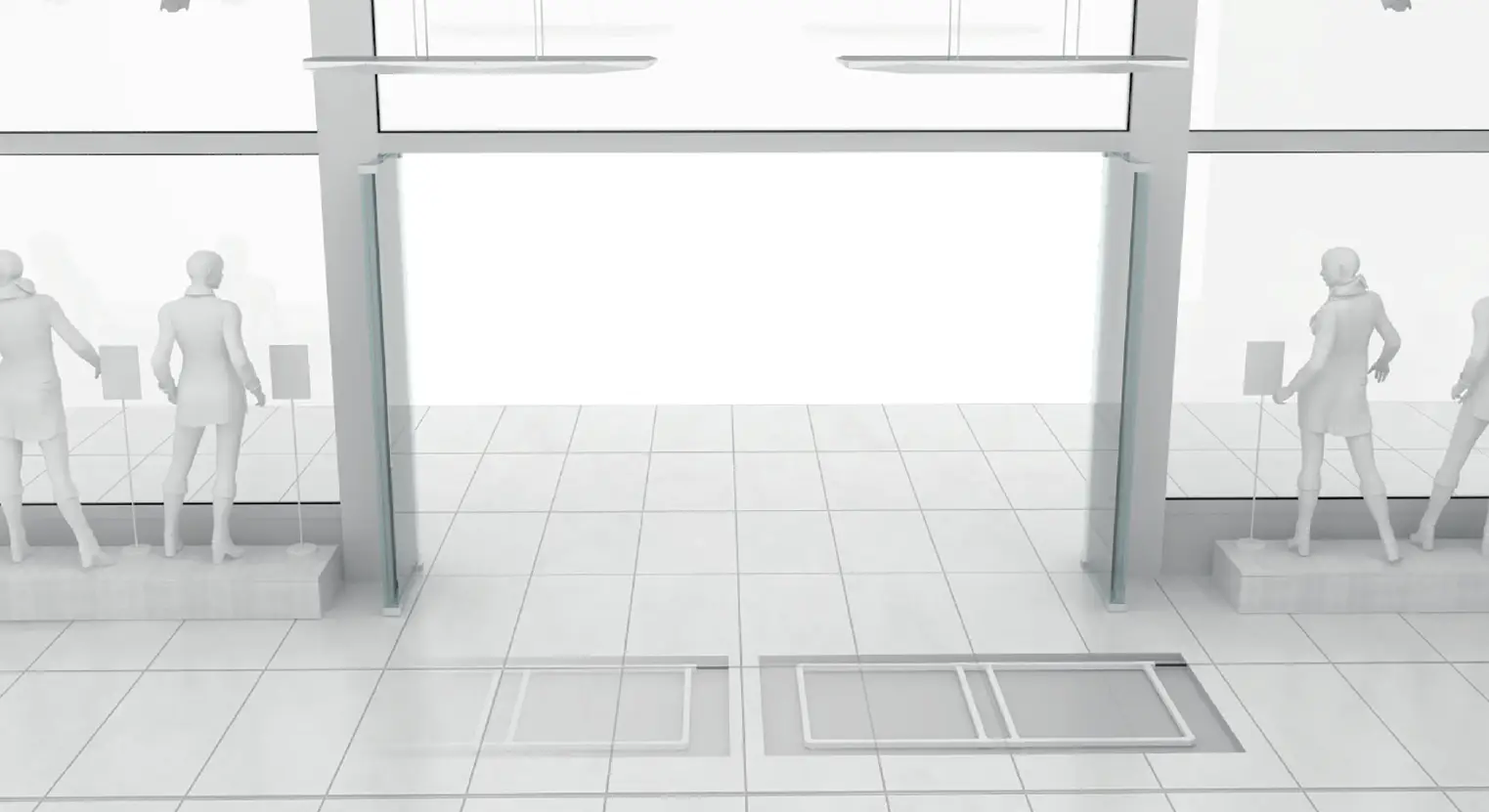

  • Extends floor system detection height range to full area
  • Maximum mounting height depends on TAGs used, for DR labels it is 2.7 meters MAX
  • Includes AM TRX electronics, RGB alarm light and buzzer
  • Optional embedded UHF RFID antenna and reader
  • Set of 1.5 meters mounting lanyards included
  • Buzzer and RGB alarm lights
  • Available in white (standard), silver or black color
  • External PSU needed

Technical parameters

MQTT and REST API (optional by license) yes
Energy-saving mode yes
Alarm mode RGB light and buzzer
Color options Matt white
Certifications UL, CE, FCC
Dimensions (L x W x H) 133 x 32 x 6.5 cm (52.4 x 12.6 x 2.56 in)
Weight 5.7 kg
Power requirement 115V/60Hz or 230V/50Hz, 35W max
Operating frequency 58 kHz
Detection-labels up to 180 cm (5.9 ft.) aisle

Product benefitsFrom Callidus

  • Own production

    We manage the entire production ourselves.

  • Detection accuracy

    Suitable for high loss environments.

  • Customizations

    We can prepare a product exactly to your specifications.

  • Compatibility

    We are compatible with global retail standards.
